Checklist: Verifying Rivet Shear Strength for Sheet Metal

Why verify rivet shear strength before assembly

Shear failure in riveted sheet metal joints is a common cause of structural compromise. A rivet may look intact from the outside while the shank has already yielded under sustained load. Verification happens before the joint is sealed or covered.

This checklist focuses on the physical and documentary evidence needed to confirm that a rivet can carry the intended shear load. It applies to single shear and double shear configurations in structural panels, brackets, and access covers.

Check the material specification

Start with the rivet material data sheet. The grade, alloy, and heat treatment determine the base shear capacity. For steel rivets, the carbon content and tempering process set the ultimate tensile strength, which directly correlates to the shear strength.

For aluminum rivets, the alloy series and temper code matter. A high-strength alloy in a hard temper provides higher strength but reduced ductility. The sheet metal being joined must have a similar or higher yield strength than the rivet to prevent the joint from failing in bending before the rivet shears.

Look for a material certificate or mill test report. If the report is missing, ask the supplier for batch traceability. Without it, you cannot confirm that the material actually meets the stated grade.

Red flag to watch for: The material specification lists only a generic grade such as “steel” without a specific standard or alloy designation. This leaves the strength undefined.

Verify the rivet sizing and hole tolerance

Rivet shear strength depends on the cross-sectional area of the shank. The shank diameter must match the hole diameter with the correct tolerance. Too tight a fit causes excessive bending stress in the sheet during installation. Too loose a fit creates a gap that concentrates stress at the hole edge.

Measure the shank diameter with a micrometer. Measure the hole diameter with a bore gauge or a calibrated go/no-go plug. The clearance must fall within the tolerance range stated in the drawing or the applicable fastener standard.

For single shear joints, the shank area is the primary shear area. For double shear joints, the shear area is roughly double the single shear area, but the design must account for the load path through both the sheet and the rivet.

Red flag to watch for: The hole is noticeably larger than the rivet shank, or the rivet head does not seat flat against the sheet surface. This indicates a fit problem that reduces effective shear area.

Review the load test records

Load testing proves that the rivet can carry the specified shear load without permanent deformation. The test applies a force perpendicular to the shank axis and measures the displacement at a defined load level.

Check the test report for the applied load, the displacement at proof load, and the failure load if the test is destructive. The proof load should be a percentage of the ultimate shear strength, commonly in the range of 50 to 80 percent depending on the application.

For non-destructive testing, the report should include the displacement curve. A sudden increase in displacement at a low load indicates a defect or an incorrect material grade.

Red flag to watch for: The test report does not state the test temperature, the load application rate, or the method of load application. These variables affect the measured shear strength.

Inspect the shank and head condition

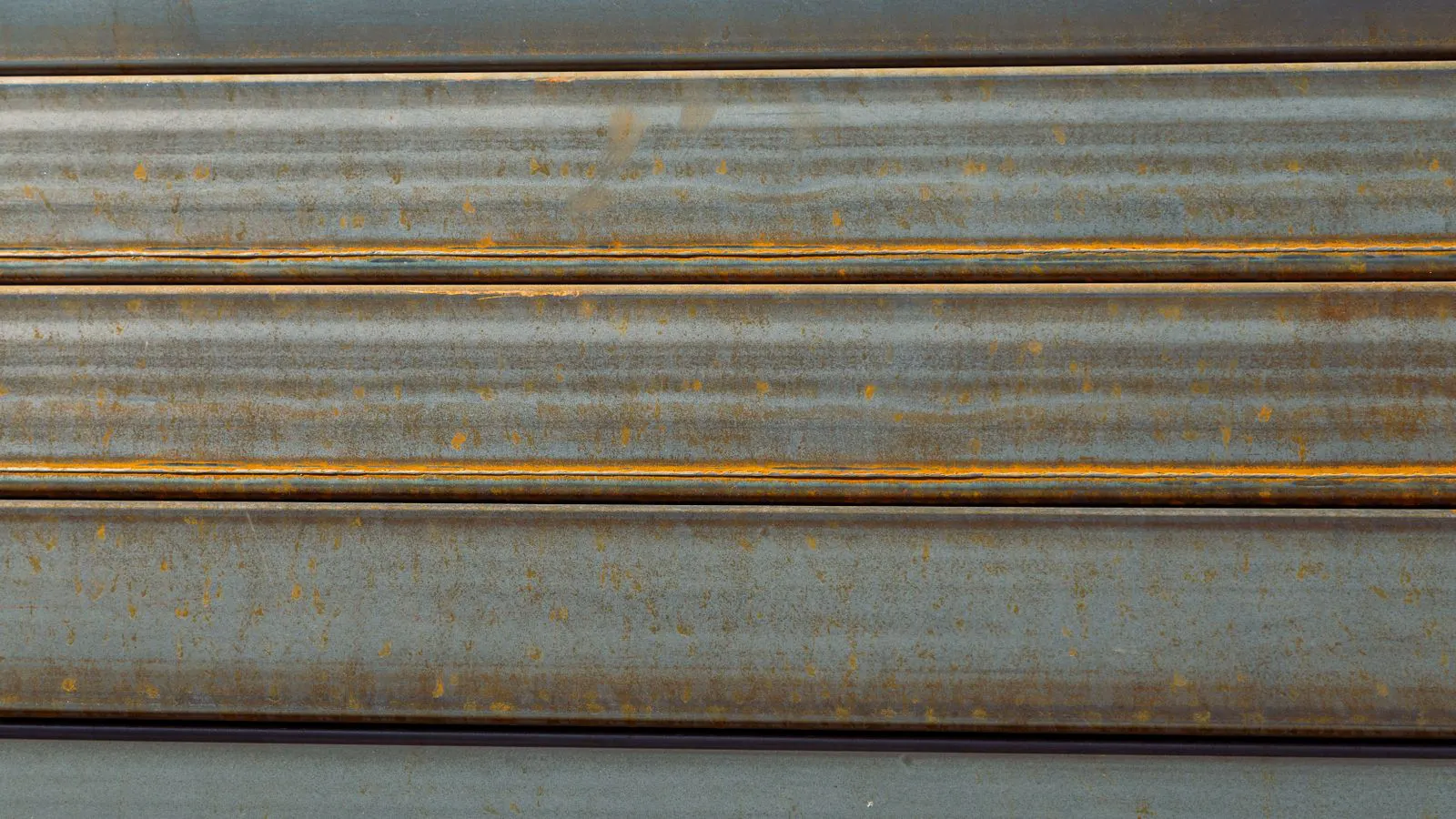

A rivet that has been stored in a damp environment may develop corrosion on the shank. Corrosion reduces the effective cross-sectional area and creates stress concentrators. Examine the shank under magnification for pitting, rust, or discoloration.

Check the head for cracks or deformation. A dented head may indicate that the rivet was installed with too much force, which can work-harden the material or introduce internal cracks. For solid rivets, the shank should be straight and free of kinks.

For hollow rivets, inspect the shank for splits or delamination. The hollow construction saves weight but reduces the shear area. Any damage to the shank wall compromises the joint.

Red flag to watch for: The shank surface is rough, pitted, or discolored. The head is dented or the shank is bent. These are signs of handling damage or incorrect installation.

Confirm the sheet metal thickness and joint design

The sheet metal thickness must be sufficient to support the rivet size. Thin sheet metal bends easily and can pull the hole out of the plate before the rivet shears. The thickness should be at least equal to the rivet diameter for most sheet metal applications, though this varies with the load and the configuration.

Review the joint drawing. The number of rivets in the line, the spacing between rivets, and the edge distance all affect the shear load distribution. A single rivet in a thin plate carries more load per unit area than multiple rivets in a thicker plate.

Check that the rivet is the correct type for the joint. A solid rivet is stronger than a hollow rivet for the same diameter. A self-tapping rivet is not a structural fastener and should not be used for high shear loads.

Red flag to watch for: The sheet metal is thinner than the rivet diameter, or the drawing calls for a hollow rivet in a high-load structural joint. These are design errors that reduce safety.

Check the installation method and torque

The installation method affects the final shear strength. For solid rivets, the shank is peened to expand the material. The peening force must be controlled. Too little peening leaves the shank loose. Too much peening cracks the shank or the sheet.

For rivets with a nut or a locking washer, the torque must be within the specified range. Over-torquing stretches the sheet and the rivet, reducing the preload. Under-torquing allows movement under vibration, which causes fretting and wear.

Use a calibrated torque wrench or a calibrated peening tool. Record the torque value or the peening energy on the work instruction.

Red flag to watch for: The installation tool is not calibrated, or the work instruction does not specify the peening force or the torque range. This makes it impossible to verify that the joint was installed correctly.

Review the documentation and traceability

The final step is to confirm that the documentation supports the physical checks. The purchase order, the material certificate, the load test report, and the installation record should all be in the project file.

Each document should reference the same batch number or heat number. If the material certificate and the load test report refer to different batches, the records are not consistent.

Keep the documentation with the assembly. If the assembly is installed in the field, the records should be stored with the equipment maintenance file.

Red flag to watch for: The material certificate is missing, or the load test report does not match the batch number on the rivet. This breaks the chain of traceability.

Quick reference table for shear checks

Check item	Acceptable condition	Red flag
Material grade	Matches specification and certificate	Generic grade without standard
Shank diameter	Within tolerance of hole diameter	Shank too small or too large
Load test report	Proof load and displacement recorded	No test report or missing data
Shank condition	Straight, smooth, no corrosion	Pitting, bending, or discoloration
Sheet thickness	At least equal to rivet diameter	Thin sheet with large rivet
Installation record	Torque or peening force recorded	No tool calibration or record

Common mistakes that reduce rivet shear strength

Using the wrong rivet type is the most common error. A hollow rivet is lighter but weaker than a solid rivet. A self-tapping rivet is for thin gauges and low loads. A structural joint requires a solid rivet or a high-strength structural rivet.

Ignoring the hole clearance is another frequent mistake. A hole that is too large creates a gap. The gap concentrates stress at the hole edge and can cause the sheet to tear before the rivet shears. A hole that is too tight causes bending stress in the shank during installation.

Skipping the load test is a risk that cannot be recovered. A rivet that passes a visual inspection may still have a defect. The load test is the only way to confirm that the shank can carry the shear load without yielding.

When to stop and re-evaluate

If any item in this checklist fails, stop the assembly process. Do not proceed to the next step until the failure is resolved. A failed rivet can cause a joint to fail under load, which can lead to injury or equipment damage.

Contact the supplier if the material grade is wrong. Contact the installer if the installation method is incorrect. Contact the engineer if the joint design does not support the load.

Resolving the issue may require replacing the rivets, drilling new holes, or redesigning the joint. The cost of stopping now is far lower than the cost of a field failure.

Final verification step

Before the joint is sealed, perform a final visual check. Confirm that the head is flat, the shank is straight, and the sheet is not deformed. Confirm that the documentation is complete and consistent.

Sign the work instruction. Store the records. The joint is ready for service only when the physical checks and the documentation both pass.
