Troubleshooting: Why Incoming Bolts Fail Torque Tests

What Does a Torque Test Actually Measure

A torque test does not measure clamping force directly. It measures the resistance felt by the wrench as the bolt rotates through its threads and the joint surfaces bear. When a bolt arrives with a torque failure, the wrench either hits a hard stop too early or spins without building the required tension. Both outcomes point to a mismatch between the fastener and the joint.

Torque is a proxy for preload. The relationship depends on the coefficient of friction at the threads and the head-to-flange bearing surface. A change in any of those variables changes the torque needed to achieve the same clamping force. If a bolt fails the test, the problem is rarely the torque wrench. It is almost always the fastener, the joint surface, or the assembly process.

Common Symptoms of Bolt Torque Failure

Symptoms vary depending on where the defect sits in the fastener chain. A stripped thread may strip the mating part. A soft bolt may spin freely but not clamp. A contaminated bolt may require excessive torque and then shear.

Symptom	Likely cause	What to do
Torque wrench reaches spec but bolt spins freely	Thread damage, stripped mating hole, or soft material	Check thread geometry with a plug gauge. Verify material grade with a hardness test.
Wrench stops short of required torque	Contamination, thread galling, or wrong thread form	Clean threads. Check for burrs. Confirm thread pitch and diameter.
Bolt reaches torque but joint leaks under load	Insufficient preload, wrong washers, or low-strength fastener	Verify material grade. Re-torque with calibrated tools. Check washer flatness.
Thread strip during assembly	High friction, cross-threading, or hardened mating part	Lubricate consistently. Verify thread runout. Inspect mating threads for damage.
Repeated failure after rework	Recurring defect in incoming shipment or incorrect assembly sequence	Quarantine lot. Run incoming inspection on a sample. Review torque sequence.

These symptoms are not always distinct. A soft bolt may also require higher torque because the joint does not seat properly. A contaminated thread may mimic a damaged thread. The diagnosis requires more than watching the wrench. It requires a structured check of the fastener and the joint.

Thread Geometry and Runout

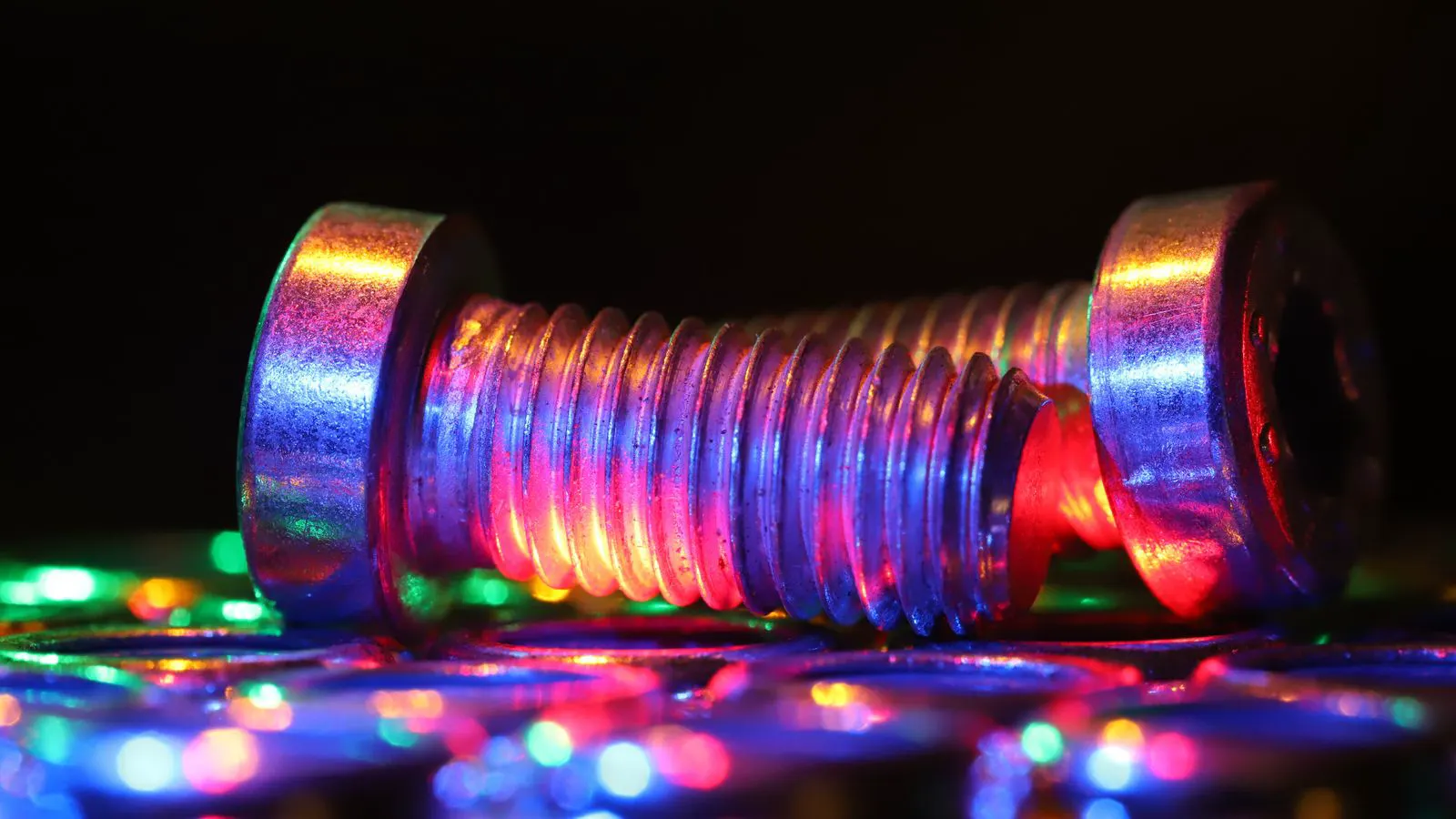

Thread damage is the most common cause of early torque failure. A single burr on the root of a thread can concentrate load and strip the mating part. A bent thread on the head end can prevent the bolt from seating fully. Thread runout, where the thread does not align with the bolt axis, forces the bolt to walk during tightening.

Inspect threads with a plug gauge or a thread ring gauge. Hold the gauge against the bolt under good light. Look for nicks, flat spots, or deformation. Check the thread runout with a dial indicator if the defect is not visible. A bolt that passes a visual check but still fails torque may have a subtle runout that only shows under load.

Thread runout also affects the friction model. A misaligned thread increases the effective friction angle. The wrench must work harder to rotate the bolt, but the clamping force may still be low. This is a common cause of failure in high-speed assembly where operators rely on torque values rather than direct clamping measurement.

Material Grade and Heat Treatment

A bolt that fails torque because it is the wrong grade is a different problem from a bolt that fails because of surface damage. The material must have the correct tensile strength to develop the required preload before yielding. A lower-grade bolt may spin under torque without generating clamping force. A higher-grade bolt may reach torque but then crack under cyclic loading.

Verify the grade with a hardness test. Magnetic particle inspection can detect surface cracks, but it does not confirm grade. Hardness testing confirms the heat treatment. A bolt that is too soft will not clamp. A bolt that is too hard may be brittle and prone to fracture. The hardness value must match the specified grade for the material.

Incoming inspection should include a sample of hardness tests per lot. If the hardness is out of range, the lot should be quarantined. A single bad bolt is an inconvenience. A lot of soft bolts is a line stop. The cost of holding a lot is far lower than the cost of a field failure.

Lubrication and Friction Control

Friction is the variable that most often changes between a lab test and the production floor. Lubrication changes the coefficient of friction at the threads and the head bearing surface. A dry bolt requires more torque to reach the same preload. An over-lubricated bolt may reach torque with less clamping force than expected.

The torque-tension relationship is not a fixed number. It depends on the coefficient of friction. If the lubrication changes, the torque value changes. A bolt that passed torque in one process may fail in another if the lube is different. The fix is to control the lubrication. Use the same product, the same amount, and the same application method.

Apply lubricant to the threads and the head-to-flange surface. Do not apply it to the mating part surface unless the specification calls for it. Contamination on the mating surface changes the friction model in a different way. A dirty washer or a rough flange will raise the torque requirement and reduce clamping force.

Surface Condition and Joint Preparation

The joint surface matters as much as the bolt. A rough flange, a burr on the hole edge, or a layer of paint on the washer surface will change the torque reading. A bolt that fails torque on a clean joint may pass on a dirty one. The defect is not always in the fastener.

Inspect the joint surface before assembly. Remove paint, rust, and burrs. Check the washer for flatness and hardness. A warped washer will not distribute load evenly. The bolt may reach torque but the joint may still leak or vibrate loose.

Thread the mating part before starting the torque sequence. Cross-threading is a common cause of early failure. If the first few turns feel rough, stop. Back the bolt out and clean both threads. Forcing a cross-threaded bolt through will damage the threads and cause a torque failure at the first re-torque.

Incoming Inspection Protocol

Incoming inspection is the first line of defense against torque failure. A structured inspection catches defects before the fastener reaches the assembly line. The inspection should cover dimensions, thread geometry, material grade, and surface condition.

The protocol should include a sample size appropriate to the lot size. A small lot may require a 100 percent check. A large lot may require a statistical sample. The sample should include a hardness test, a thread gauge check, and a visual inspection of the head and shank.

If a lot fails, quarantine it and investigate the root cause. Contact the supplier with the specific defect. A bolt with a nick on the thread is a different issue from a lot with low hardness. The corrective action depends on the defect. A one-off damaged bolt may be reworked. A lot with low hardness must be rejected.

Prevention and Long-Term Fixes

Prevention requires controlling the variables that affect torque. The fastener, the joint, and the process must all be controlled. A bolt that is correct on the bench but fails in the field usually points to a process gap.

Use calibrated torque wrenches. A wrench that reads high will over-torque a bolt. A wrench that reads low will under-torque it. Calibrate on a schedule. Verify with a torque tester before and after shifts.

Document the torque sequence. The order of tightening matters. A joint with multiple bolts should be tightened in a cross pattern. A random sequence will cause uneven preload. The bolt that is tightened last will carry more load and may fail first.

Track torque data. If a torque failure occurs, the data may show a pattern. A single failure may be an outlier. A cluster of failures at one station may point to a specific defect. The data is the best tool for finding the root cause.

When to Escalate

Some torque failures cannot be fixed on the line. If a bolt fails after multiple re-torque attempts, or if a lot of bolts fails at the same station, stop the line. Escalate to quality control. A repeated failure is a signal that the incoming fastener is not meeting specification.

Escalation should include a sample of the failing bolts. Include the torque data, the joint preparation notes, and the lubrication used. The supplier needs a clear description of the defect. A vague complaint about bad bolts will not produce a useful corrective action.

The fix may be a supplier change, a process change, or a design change. The goal is to find the root cause and prevent recurrence. A bolt torque failure is not a random event. It is a symptom of a specific defect. Find the defect and the failure stops.
